Specifications for

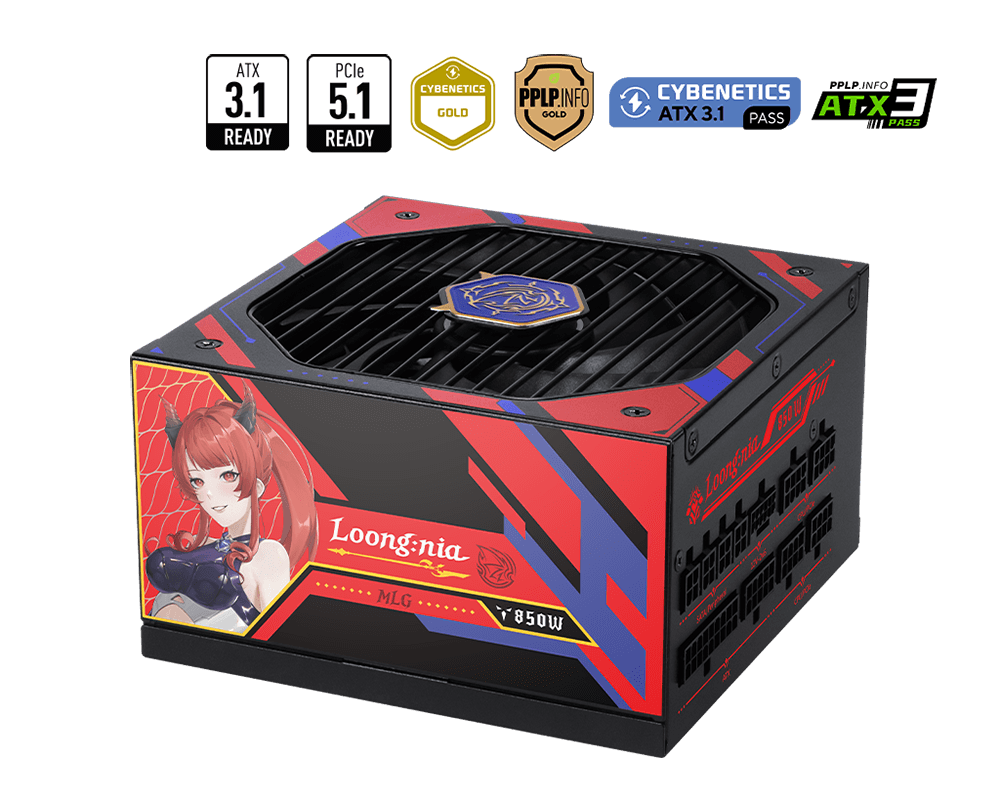

A850GLS MLG EDITION
Model Name
Model Name
TORX FAN 12CM
Audio
Audio
120mm x 120mm x 25.6mm
Modular
Modular
Yes (full modular)
Fan Bearing
Fan Bearing
Fluid Dynamic Bearing
Power Excursion
Power Excursion
1870W (*up to 220% of the PSU's rated power for 100μs)
Power Watt
Power Watt
850W
Input Voltage
Input Voltage
100-240V~
Bearing Type
Bearing Type
Hydro-Dynamic Bearing
Rated Speed
Rated Speed
500 - 1800 ±15% RPM
Input Frequency
Input Frequency
47-63 Hz
Air Flow
Air Flow
19.79 - 71.27 CFM
EPS (8 pin)
EPS (8 pin)
2
Efficiency
Efficiency
80 PLUS Gold (up to 90%)
Static Air Pressure
Static Air Pressure
0.16 - 2.09 mm-H20
PCI-E 5.1 (16 pin)
PCI-E 5.1 (16 pin)
1 (600W)
ATX (24 pin)
ATX (24 pin)
1
Fan Size
Fan Size
135 mm
Radiator Compatibility
Radiator Compatibility
120 / 140 / 240 mm
Connector
Connector
4-Pin PWM/DC
PCI-E (6+2 pin)
PCI-E (6+2 pin)
4
Dimension
Dimension
150 x 150 x 86 mm
Life Expectancy
Life Expectancy
MTTF 150,000 Hours (25℃)
SATA (15 pin)
SATA (15 pin)
8
PFC Type
PFC Type
Active PFC
MOLEX (4 pin)
MOLEX (4 pin)
3
Protection
Protection
OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
FDD (4 pin)
FDD (4 pin)
1
Weight
Weight
169g
